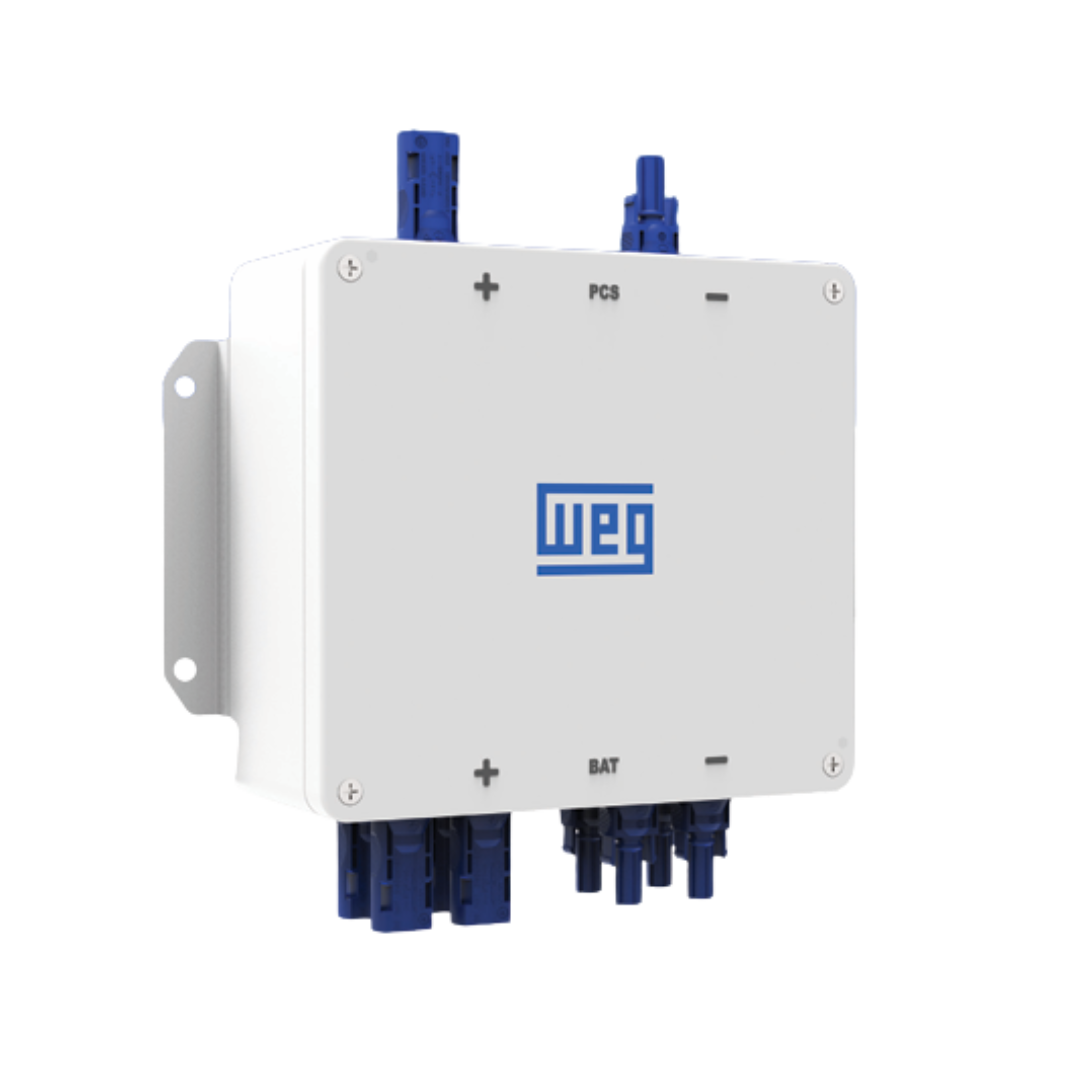

WEG Battery Junction Box – Connects 4 Batteries in Parallel | Indoor/Outdoor Wall-Mount

The WEG JBW 41DC 50A Battery Junction Box is a robust and compact solution for safely integrating up to 4 battery units in parallel with a single output for loads. Ideal for residential, commercial, and off-grid energy storage systems, this junction box simplifies installation while maintaining high safety and performance standards.

✅ Key Features:

• Supports Up to 4 Batteries in Parallel – Efficient energy distribution for systems up to 40 kWh
• Rated for 500V DC and 50A Continuous Current (65A Peak)
• IP65 Rated – Weatherproof for both indoor and outdoor installations
• Wall-Mount Design – Compact (186 × 170 × 78 mm) and easy to install
• Natural Convection Cooling – No moving parts, silent and reliable operation
• Wide Operating Range – Works in temperatures from -20°C to +70°C

📦 Technical Specifications:

• Model: JBW 41DC 50A W0
• Input: 4 Battery Inputs
• Output: 1 Load Output
• Dimensions: 186 × 170 × 78 mm
• Weight: 4.5 kg
• Ingress Protection: IP65 (dust-tight & water-resistant)
• Installation: Wall-mounted, Indoor/Outdoor
