WEG Solar ESS Cabinet with 75kW Solar PCS & inbuilt 215kWh Battery Storage

Intelligent Energy Storage for Microgrids, C&I, and Utility Projects

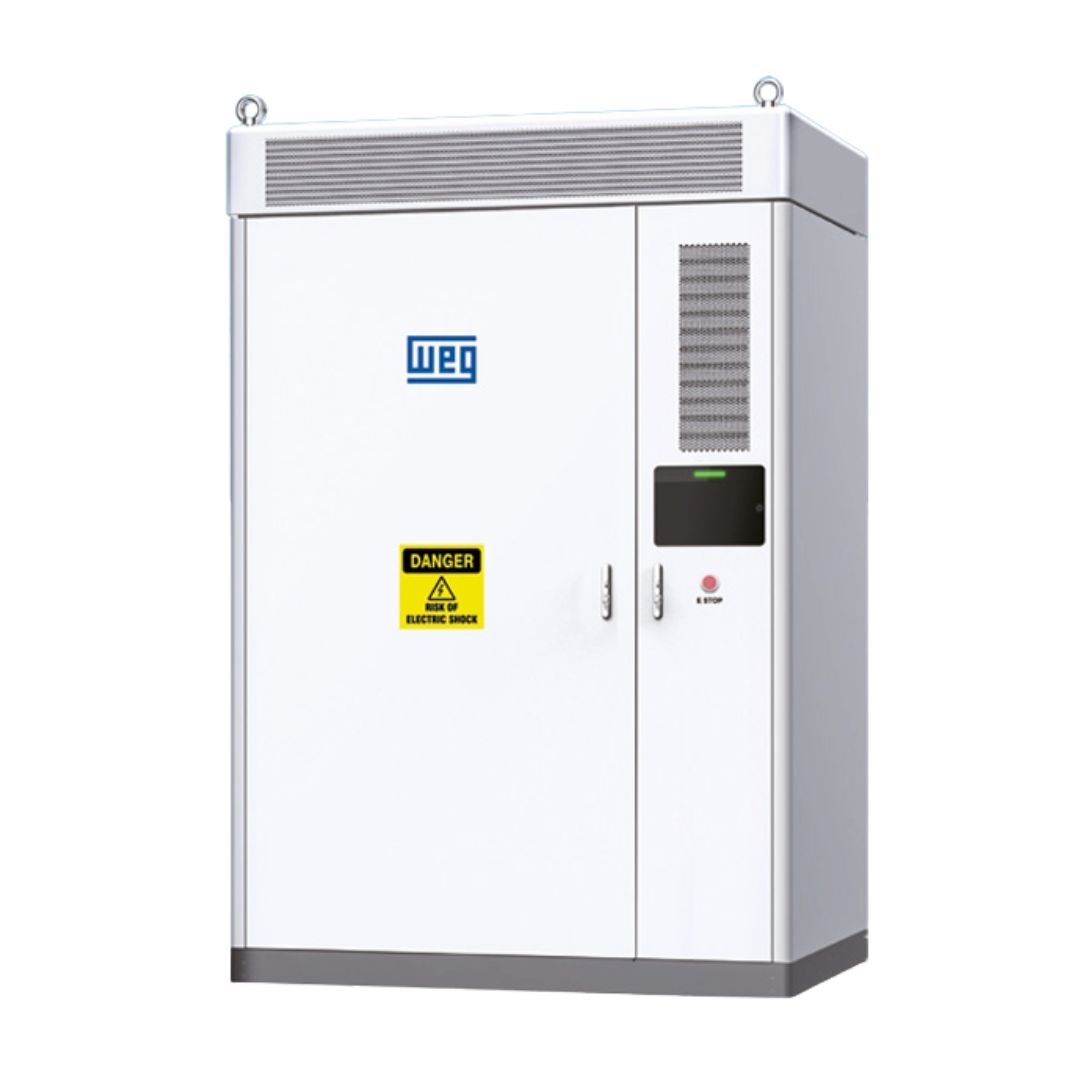

The WEG SBW410 T075-B215 W00 Solar ESS Cabinet is a high-capacity, grid-ready hybrid energy storage solution that combines 215 kWh of LFP battery storage with a 75 kW inverter. Built for microgrids, commercial & industrial (C&I), and off-grid power systems, this ESS cabinet offers millisecond-level on/off-grid switching, four-level fire protection, and remote integration via WEG Cloud VPP support (OpenADR, 2030.5).

🔋 Key Features:

• 215 kWh LFP Battery with 90% DoD and 280Ah cell configuration
• 75 kW AC Inverter with 98% conversion efficiency and <3% THDi
• Smart Air Cooling & IP55 Protection for reliable outdoor operation
• Advanced Safety: Cell-level monitoring, temperature control, and aerosol fire suppression
• Grid-Ready: Nominal 400V (±20%), 50/60 Hz, adjustable PF 0.99 lead/lag
• VPP Compatible: Ready for integration with Virtual Power Plants
• Certified: IEC62619, IEC63056, UN38.3, and more

📐 Technical Specs:

• Model: SBW410 T075-B215 W00
• Battery Type: LFP (Lithium Iron Phosphate)
• Battery Capacity: 215 kWh
• AC Power Output: 75 kW
• Voltage Range: 600–876V DC (battery), 400V AC grid
• Dimensions: 1680 × 2420 × 1200 mm
• Weight: 2800 kg
• Cooling: Smart Air Cooling
• Ingress Protection: IP55
• Communication: Ethernet / RS485 / CAN / DI

Powerful, scalable, and VPP-ready — the WEG SBW410 ESS Cabinet is your go-to solution for modern energy storage applications in demanding environments.
