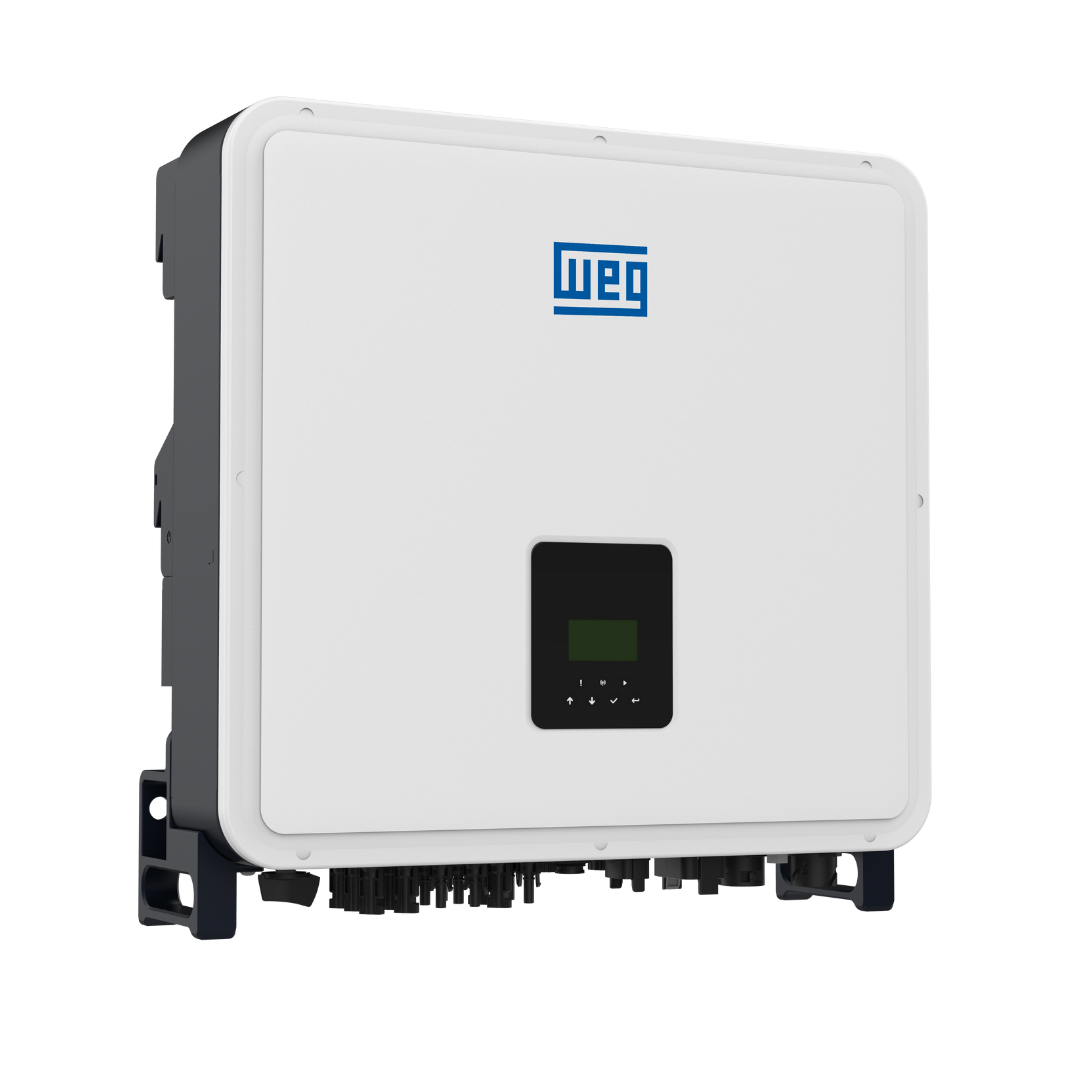

WEG 25kW 3-Phase Hybrid Solar Inverter – IP65, 3 MPPT, 80kWh Battery Support

The WEG 25kW 3-Phase Hybrid Inverter is built for mid-sized commercial and industrial solar-plus-storage systems. With 3 MPPTs and a wide DC input range (150–850V), it supports efficient energy harvesting from modern high-output and bifacial PV modules. Designed with 2 high-voltage battery inputs and external battery junction compatibility, this system enables up to 80kWh of battery storage, making it ideal for energy shifting, backup, and extended autonomy. Its IP65-rated construction, smart cooling, and full grid compliance ensure long-lasting reliability in challenging environments. Suitable for both on-grid and emergency backup (EPS) applications.

Key Features:

• Rated Power: 25kW nominal with 27.5kVA max AC output and 30kVA EPS peak (60s)
• Flexible MPPTs: 3 MPPTs for precise string-level tracking and diverse array layouts
• DC Input Capacity: Supports up to 37.5kW of solar panel input
• High Battery Capacity: Supports up to 80kWh with dual HV battery ports and junction box
• Battery Voltage Range: 150–800V, with full-load charge/discharge from 270V
• High Input Current: 32A per string – compatible with high-power modules
• EPS Functionality: Built-in backup with <20ms switchover time
• Outdoor-Ready: IP65 ingress protection, smart air cooling, and robust design
• Smart Monitoring: Wi-Fi, RS485, optional LAN, 4G, and GPRS with touch LCD control
• Protection Suite: AFCI, surge (Type II), reverse polarity, insulation monitoring, leakage detection
• Efficiency: Max 98.0%, Euro efficiency 97.3%
• Parallel Operation: Scalable up to 10 units

🔧 Size & Build:

• Dimensions: 600 mm (W) × 560 mm (H) × 225 mm (D)
• Weight: 52.5 kg (Net)
• Mounting: Wall-mounted
• Noise: <60 dB
