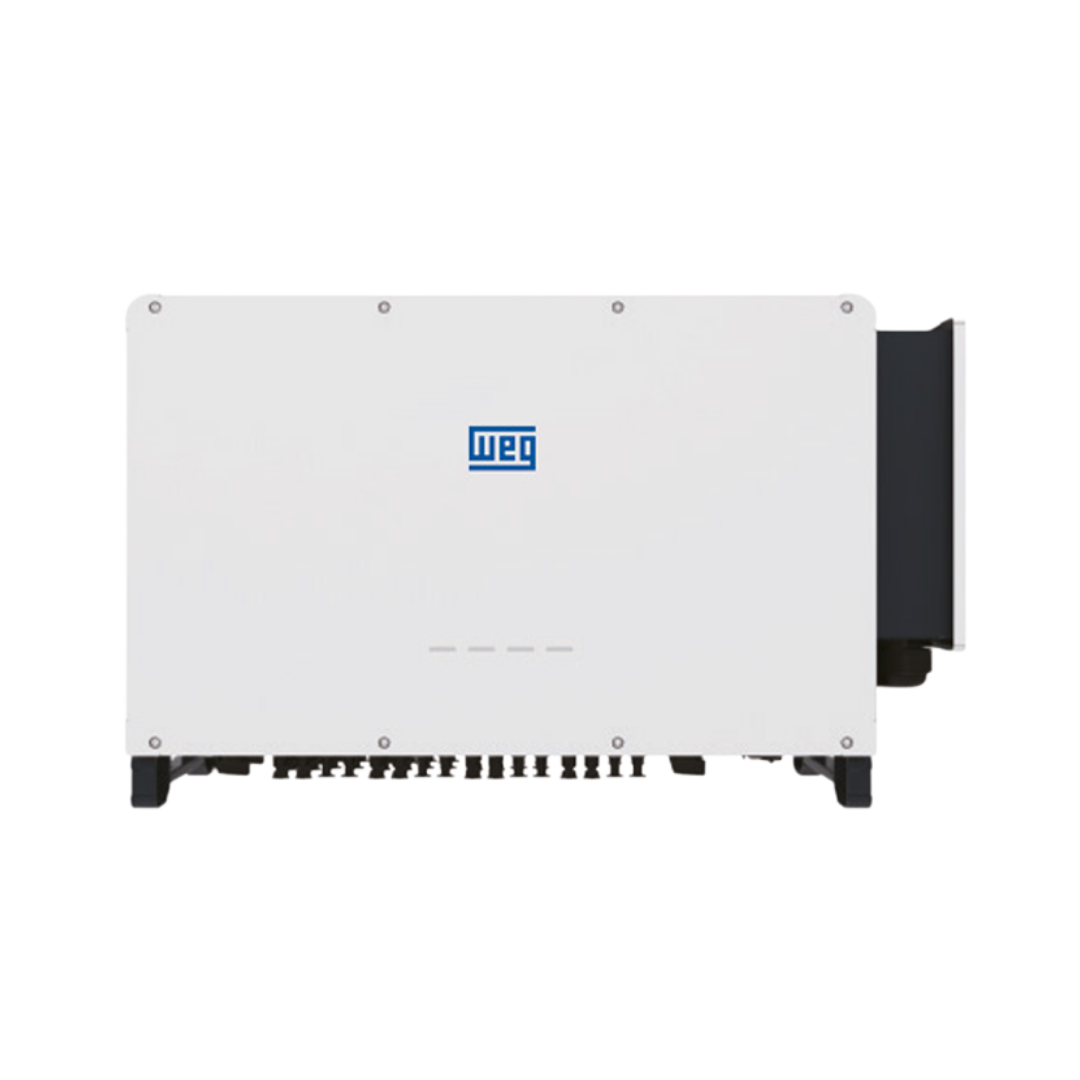

WEG 110kW Grid-Tied 3-Phase Solar Inverter – 10 MPPT, IP66, C&I Rated

The WEG 110kW Grid-Tied 3-Phase Inverter is purpose-built for EPCs and solar professionals deploying high-performance commercial and industrial PV systems. With 10 independent MPPTs, a wide DC input voltage range (200–1000V), and compatibility with high-current bifacial modules, it supports flexible string design and maximum energy yield. Its IP66 and C5 anti-corrosion rated enclosure ensures reliable outdoor operation, even in coastal or harsh environments. Smart air cooling, advanced protection features, and multi-interface communications make it ideal for scalable, grid-compliant installations.

Key Features EPCs Look For:

• Rated Power: 110kW with 121kVA max apparent power
• MPPT Architecture: 10 independent MPPTs allow granular PV array optimization
• Broad DC Window: 200–1000V MPPT range enables long string design flexibility
• High Input Current: 16A per input – supports large format and bifacial modules
• Advanced Monitoring: Smart I/V curve scanning & optional string current monitoring
• Grid Compliance: Adjustable PF (0.8 lead/lag), THDi <3%, wide voltage/frequency range
• Robust Protection Suite: AFCI, PID recovery, DC/AC surge protection, insulation and leakage monitoring
• Outdoor-Ready Design: IP66 ingress protection + C5 corrosion resistance for tough environments
• Thermal Management: Smart air-cooled system – operates up to 60°C ambient and 4000m altitude
• Remote Communication: RS485, USB, Wi-Fi, LAN, optional 4G for full O&M integration
• Efficiency: Max 98.6%, Euro 98.2% with transformerless build

🔧 Size & Build:

• Dimensions: 975 mm (W) × 630 mm (H) × 360 mm (D)
• Weight: 90 kg
• Mounting: Wall or rack-compatible
