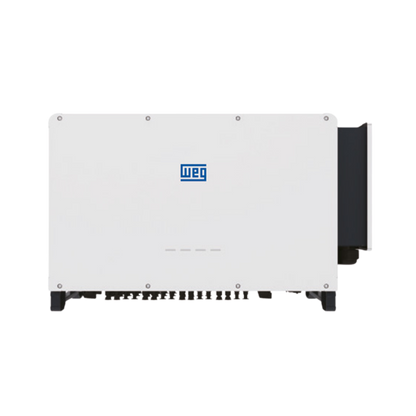

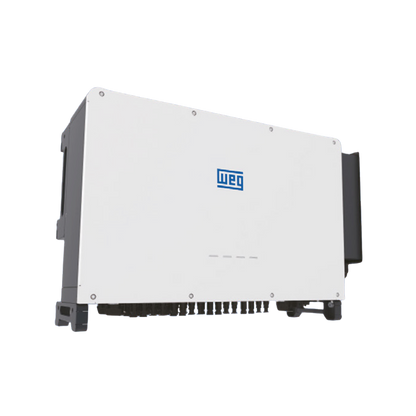

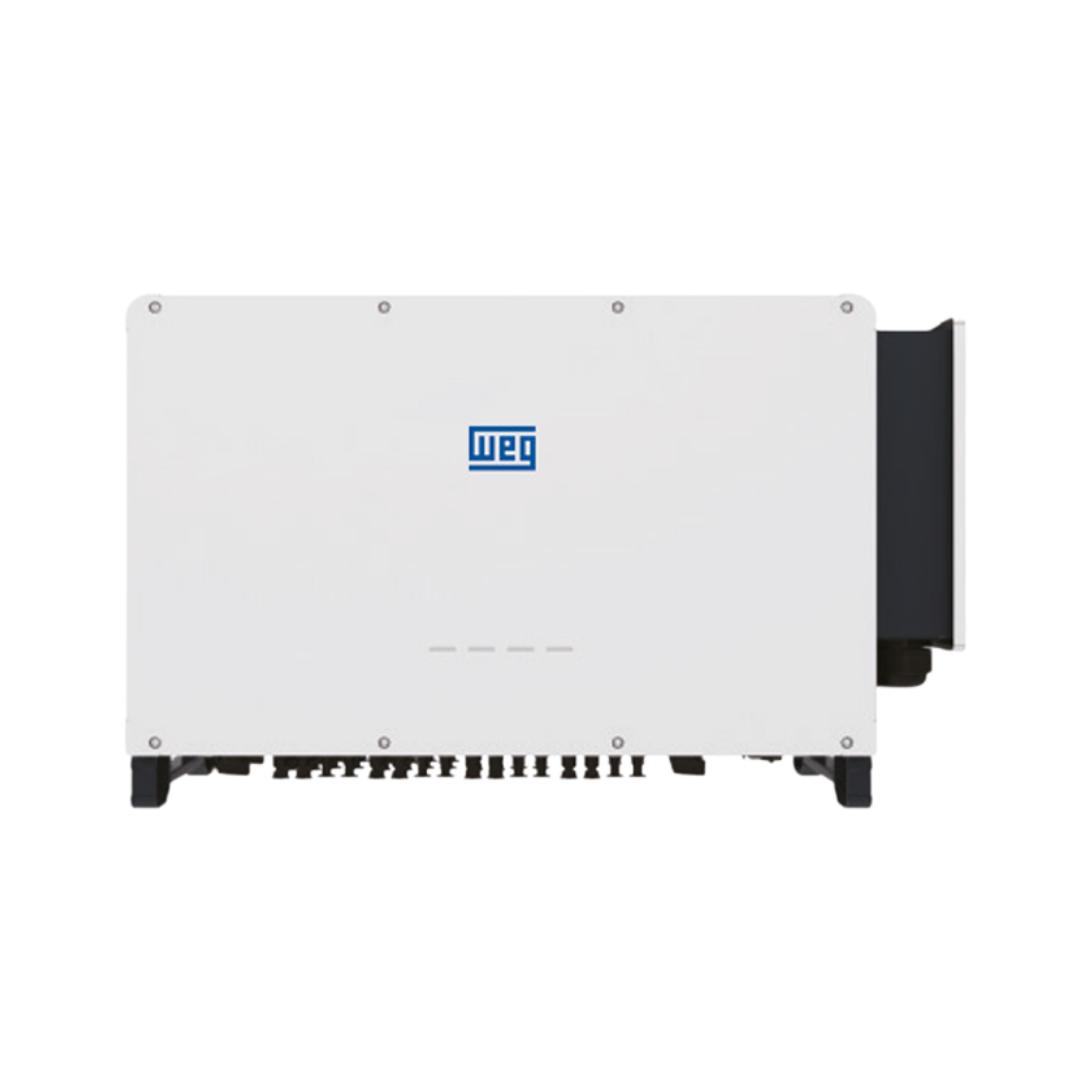

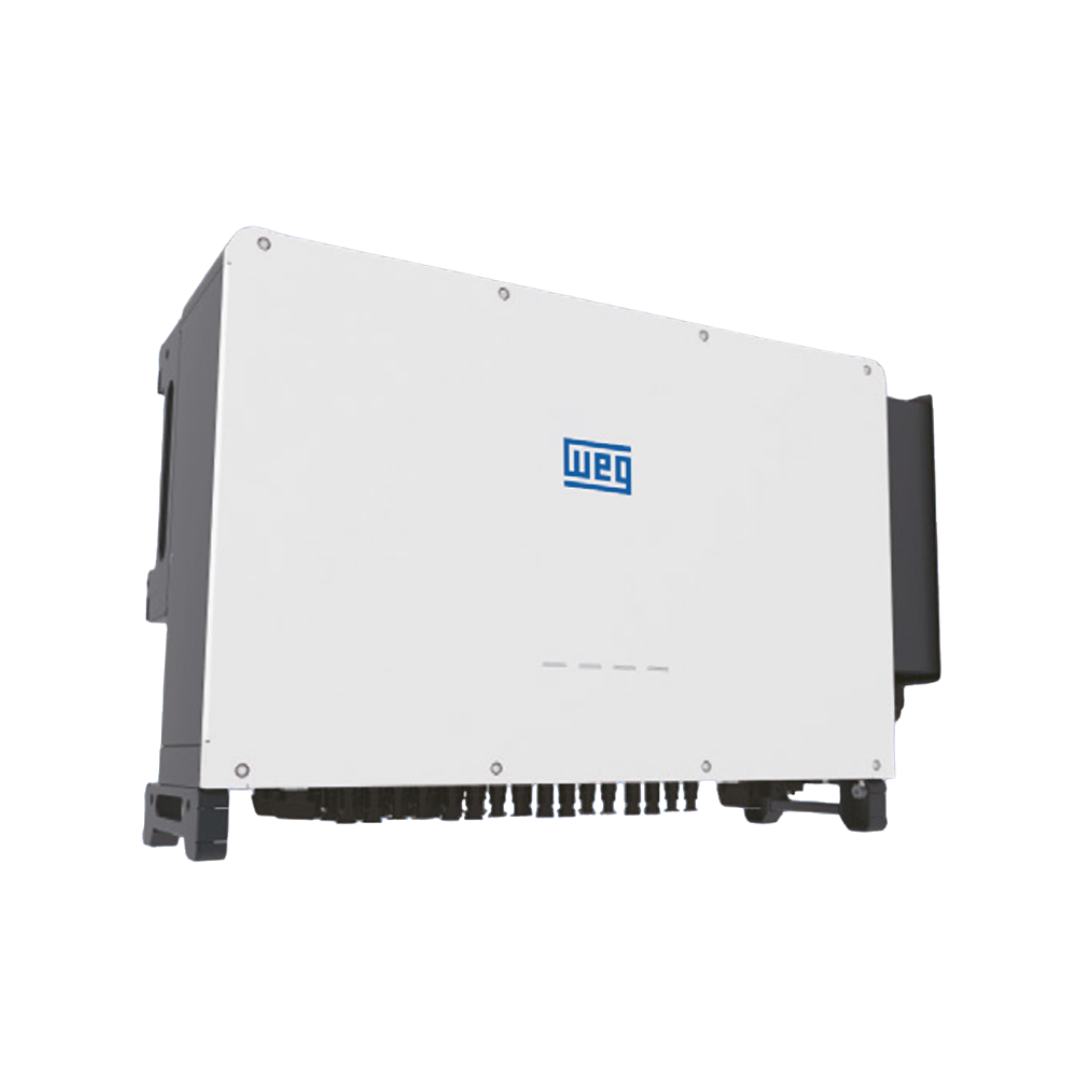

WEG 100kW Grid-Tied 3-Phase Solar Inverter – Smart MPPT & IP66 Rated

The WEG 100kW Grid-Tied 3-Phase Inverter is engineered for commercial and industrial-grade solar systems, offering high efficiency, flexible design, and robust safety features. With 9 independent MPPTs and a wide voltage range, it's ideal for complex string layouts and bifacial module compatibility. Built to last with IP66 and C5 corrosion protection, it includes smart diagnostics, AFCI, PID recovery, and comprehensive monitoring interfaces. This transformerless inverter is trusted by EPCs for its reliability, installation flexibility, and grid compliance.

Key Features EPCs Look For:

• Rated Power: 100kW with 110kVA max apparent power
• MPPT Flexibility: 9 independent MPPTs for optimal string design
• Wide Voltage Window: 200–1000V MPPT range supports longer strings
• High Input Current: 16A per input – ideal for high-power & bifacial modules
• Smart Monitoring: String-level current monitoring & I/V curve diagnostics
• Grid Compliance: Adjustable PF (0.8 lead/lag), <3% THDi, and multi-standard certified
• Durability: IP66 + C5 anti-corrosion for outdoor and coastal environments
• Protection Suite: AFCI, PID recovery, DC/AC surge protection, insulation & residual current monitoring
• Cooling: Smart air cooling system supports operation up to 60°C ambient
• Communications: RS485, Wi-Fi, LAN, USB, and optional 4G for remote O&M
• Design: Transformerless design and easy installation

🔧 Size & Build:

• Dimensions: 975 mm (W) × 630 mm (H) × 360 mm (D)
• Weight: 90 kg
• Mounting: Wall or rack-compatible
