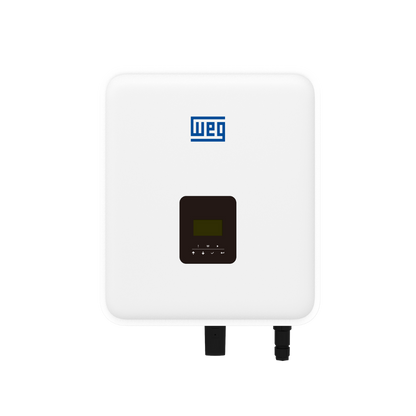

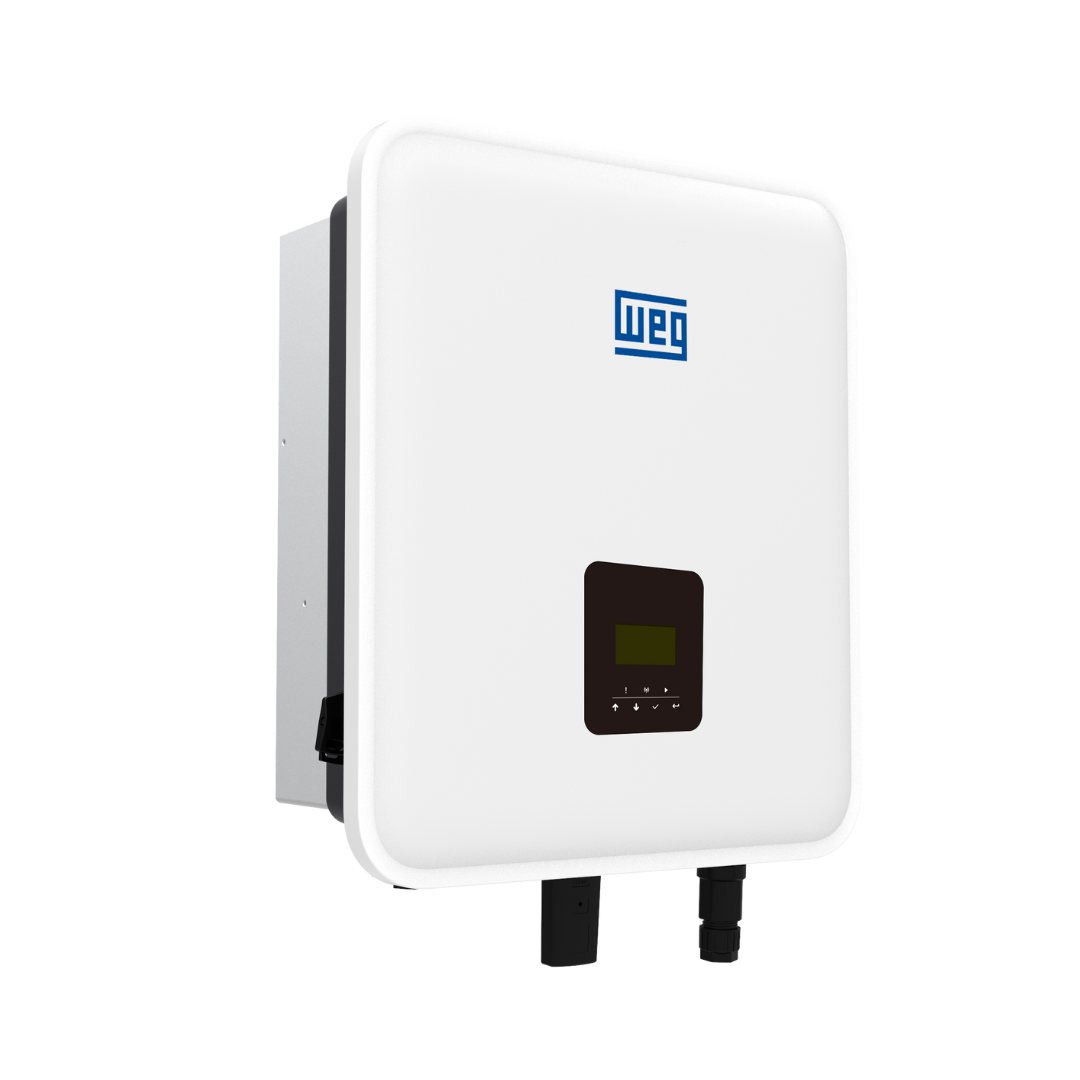

WEG 10.5kW Single-Phase Hybrid Solar Inverter – IP65, 4 MPPT, 41.9kWh Battery-Ready

The WEG 10.5kW Single-Phase Hybrid Inverter is a premium solution for residential and small commercial solar-plus-storage systems. It features 4 MPPTs, allowing flexible array configurations and maximizing energy yield across rooftops with variable orientation or shading. With support for up to 41.93kWh of high-voltage lithium battery storage, this inverter enables both grid-tied energy savings and reliable backup power during outages.

Designed with a high-efficiency transformerless architecture, this inverter reaches 97.8% max efficiency and operates silently with natural cooling. Its IP65-rated enclosure, remote monitoring, and built-in EPS (backup power) function make it ideal for modern smart homes and long-term energy independence. Whether you're an EPC designing a future-proof system or a homeowner looking to reduce energy bills and boost reliability, the WEG 10.5kW hybrid inverter offers the flexibility and performance you need.

Key Features:

• Rated Power: 10.5kW AC output with 10.5kVA EPS backup
• DC Input Capacity: Supports up to 15kW of PV DC input
• MPPT Design: 4 MPPTs for optimized generation in diverse conditions
• Battery Storage: Supports up to 41.93kWh via high-voltage lithium batteries
• EPS Functionality: <20ms switch-over with 12kW peak power for 60s
• Silent Operation: Natural convection cooling, noise level <30 dB
• High Efficiency: 97.8% max inverter efficiency, 98.5% PV to battery
• Smart Monitoring: Wi-Fi, RS485, USB, 4G (optional), with LCD display
• Outdoor-Ready: IP65 weatherproof rating for flexible installation
• Protection Features: AFCI, surge protection (Type II), reverse polarity, leakage and overcurrent protection
• Grid Compliance: NRS 097-2-1, G99, IEC 62109, and more

🔧 Size & Build:

• Dimensions: 450 mm (W) × 527 mm (H) × 208 mm (D)
• Weight: 29 kg
• Mounting: Wall-mounted
• Cooling: Natural convection (fanless)
• Display: Backlit LCD 16×4
